PORTABELLA MK III

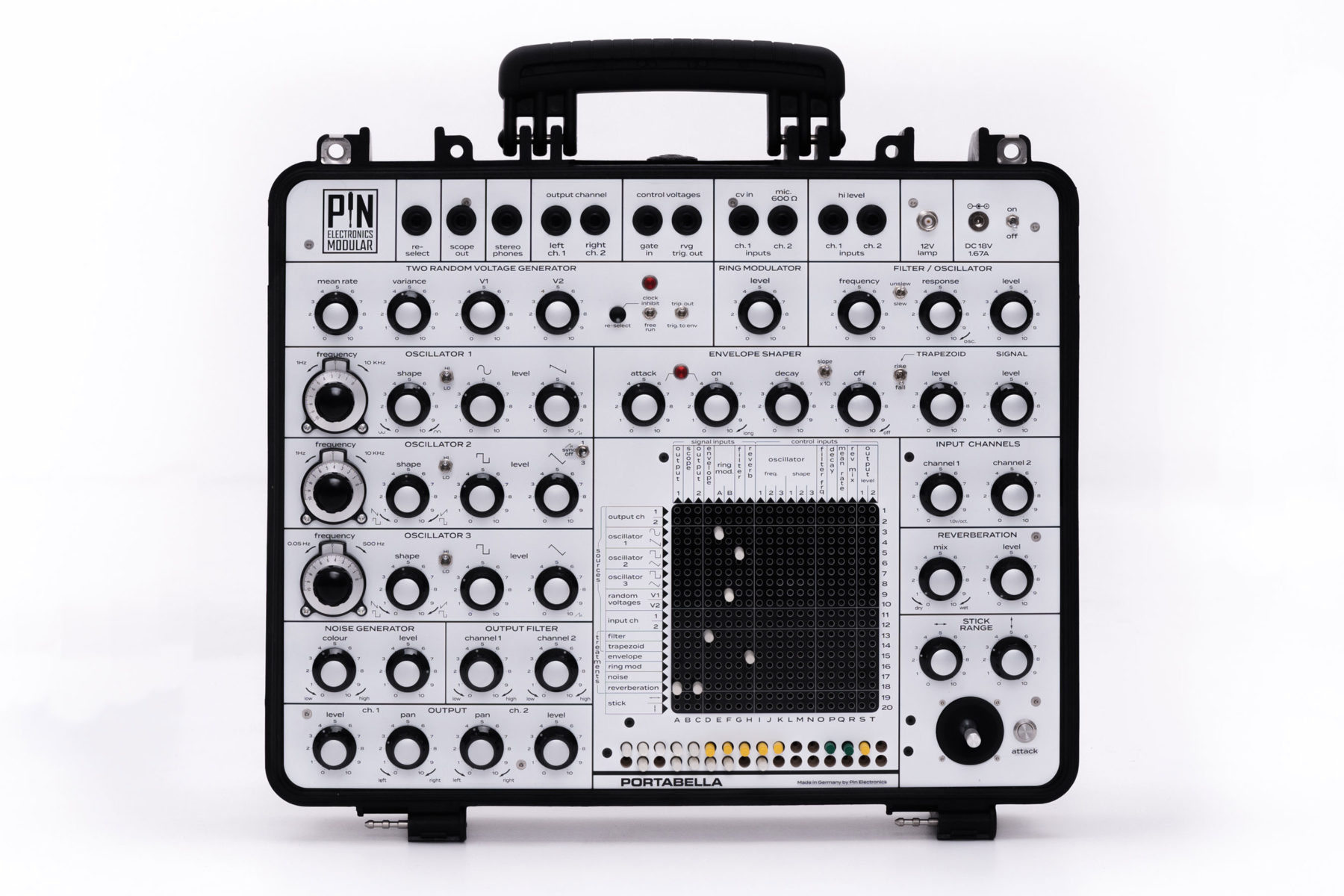

Picture above MKII differ from specs below!
Range: 1Hz – 12KHz
Modifications: shape control via matrix (sine only)
Range: 1Hz – 12KHz
Modifications: OSC Sync switch, Hi/Lo range switch, shape control via matrix
OSCILLATOR 3 / LFO
Range: 0.016Hz – 700KHz
Modifications: Hi/Lo range switch, shape control via matrix
White and Coloured
Transformerless integrated circuit
20×20 Ghielmetti Matrix 621
including 16 x 2k7 pins (white)
RANDOM VOLTAGE GENERATOR
Outputs: 2 random voltages
V1 & V2 and trigger
Range 0.2 – 20Hz
VC Mean Rate (via matrix)
VC Selection (socket)
FILTER / OSCILLATOR
A multi-purpose filter & sine oscillator
Range: 20 Hz – 20KHz
Modifications: slew/unslew switch
18dB / 24dB switch (new in Q2/22)
Decay time: 1.75 – 3.0 sec.
Voltage control of mix “wet/dry” via matrix.
Attack: 2ms – 1 sec
On time 0 – 2.5 sec
Decay: 2.7ms – 18 sec
Repeat/Off: 10ms – 7sec. (max. rate 60Hz)
Modifications: attack/decay time extension, inverter switch
2 x 2.5 VDC (max) 50Kohm) (CV Ins)
2 x 5 mVAC into 600 ohms (Mic. Input)
2 x Mono sockets
1 x Headphones
1 x RVG TRIG out (10V spikes)
1 x Scope out
INPUT CONTROLS & CV/GATE
1 x RVG re-select socket
1 x CV/ via CH1 pre-calib.1V/oct.
1 x Gate socket
474 x 415 x 149mm
Alu black/silver anodized
17lb / 8kg
EXT. POWER SUPPLY
18 V/DC 1670 mA 30W 90-240V
12V DC BNC
FREQUENTLY ASKED QUESTIONS
How do I order?
For all orders please use our contact form. Please provide a shipping address, so we can calculate shipping and handling charges.
What is the standard lead time
Our lead time is between 6-10 weeks for regular machines.
Do you have dealers or distributors?
No. All machines are exclusively available from Pin Electronics Germany.
How many pins are included with regular machines?
All Portabella’s are delivered with 16 white standard (2K7) pins.
I signed the newsletter/mailing list but did not received any email regarding the group buying?
Please check your spam folder!
Shipping & Payment
Do you ship to other countries? / International Orders
Yes, we accept international orders. The customer is responsible for all duties and taxes.
Bank wire transfers only. All payments/deposits must be in Euro funds.
We recommend to use wise.com for international payments
We use FedEX for shipping only.
Service & Warrenty
First class Service for your Portabella & Lifetime Warrenty
In the pursuit of very high quality standards, all Portabellas are designed and manufactured with a long product life in mind. However in the unlikely case that your device fails to operate properly you can have it repaired or serviced by Pin Electronics / Germany. We charge return shipping cost only, all other repairs or services are for free.
What is the difference between Portabella MKII and new MKIII?
The MKIII has no MIDI interface and comes with a standard pre-callibrated cv/gate interface.
Interfacing the Portabella
We recommend to use a Kenton Pro Solo MKIII for CV & Gate.
How to remove the suitcase lid
Lay the suitcase with the handle turned away in front of you on the table. Loosen the closures and open the lid of the suitcase to an angle of approximately 45 degree. Now move the lid to the left of the hinges to remove it from the case.
Do Portabella pins fit into the EMS Synthi or VCS3 matrix?
No, the EMS Synthi & VCS3 using a matrix by Sealectro with smaller pins. Our matrix just look like the old Sealectro.
PRICE, PAYMENT & GROUP BUY
The Portabella modular synthesisers are available directly from Pin Electronics
Portabella MKIII 6499 € exc. VAT & shipping
