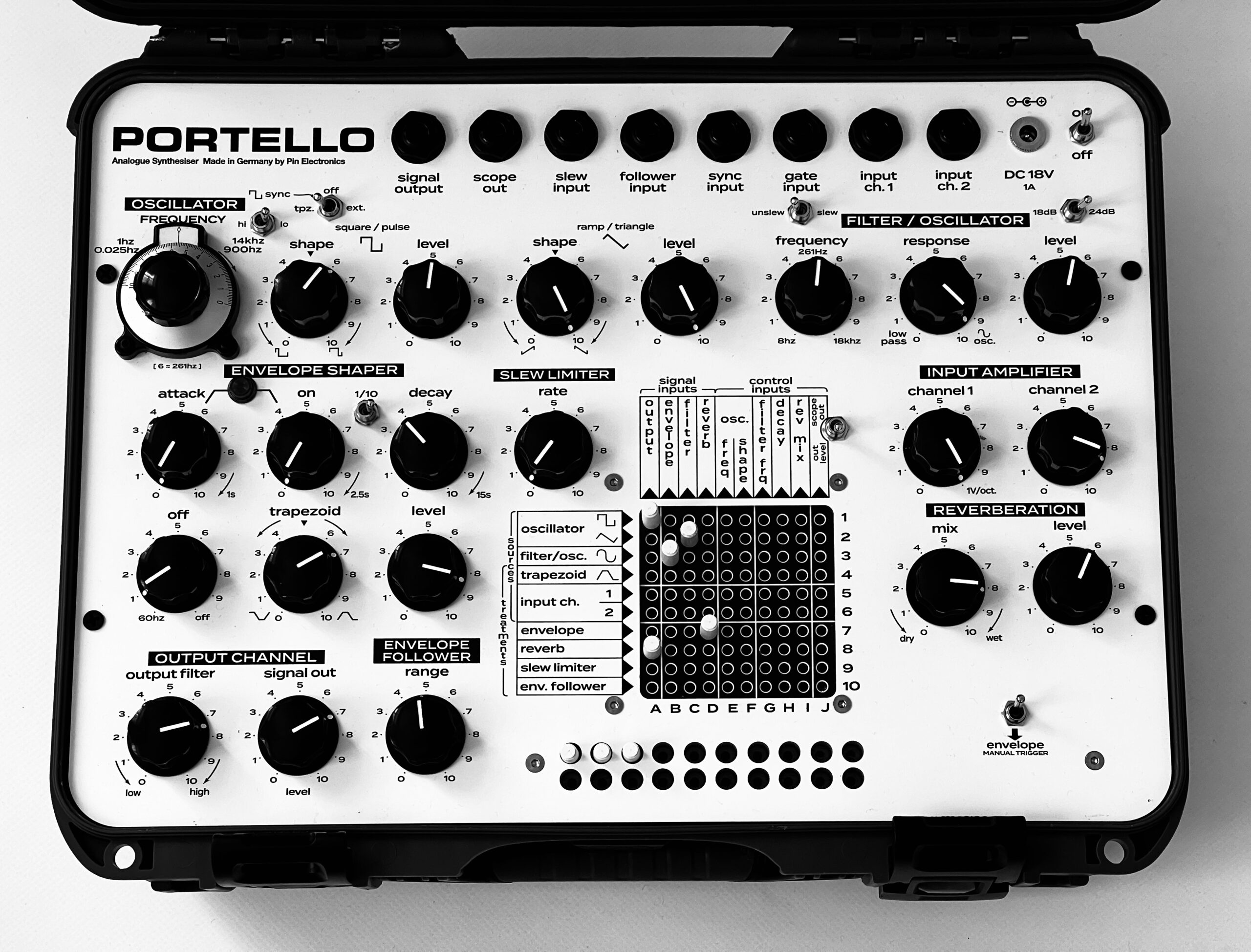

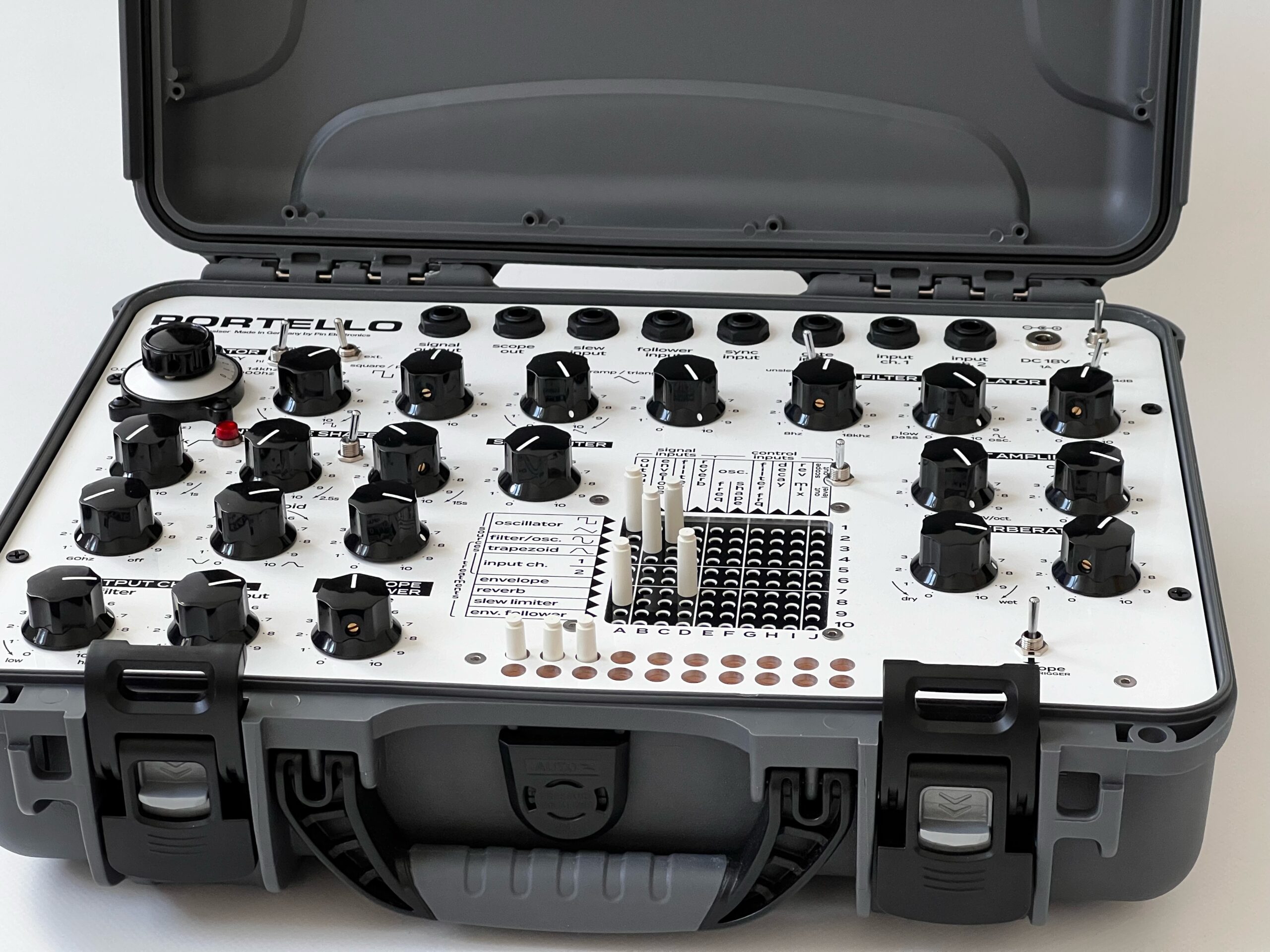

PORTELLO
A compact portable matrix modular system based on Synthi 100, Putney and Portabella modules. The 8 modules will be connected via a 10×10 high quality Ghielmetti pin matrix similar to the Portabella.
MODULES & SPECIFICATIONS
OSCILLATOR 100
Frequency Range: 2-10 Khz
Waveform 1: Square & Pulse shape variable via pot and matrix. Waveform 2: Sawtooth & Triangle shape variable via pot only.
OSC Sync via Trapezoid or external source.
FILTER / OSCILLATOR P1969
A multi-purpose filter & sine oscillator
Range: 8Hz – 18KHz
Modifications: slew / unslew switch
18dB / 24dB switch (latest circuit design!)
ENVELOPE GENERATOR
Attack: 2ms – 1 sec
On time 0 – 2.5 sec
Decay: 2.7ms – 15 sec
Repeat/Off: 10ms – 7sec. (max. rate 60Hz)
Trigger: +4V
Modifications: attack/decay time extension, inverter pot
SPRING REVERB
Decay time: 1.75 – 3.0 sec.
Springs: 3
Voltage control of mix “wet/dry” via matrix.
INPUT AMPS CH. 1 & 2
Inputs for audio or CV (Ch.1 1V/oct. pre-calibrated)
SLOW MOD. OSCILLATOR
Waveforms: Square & Pulse
OUTPUT AMPLIFIER
with Filter.
GHIELMETTI MATRIX 10×10
including 10 white 2K7 pins
OUTPUTS
1 x Mono sockets
1 x Scope out
INPUTS & CONTROLS
1 x CV/ via CH1 pre-calib.1V/oct.
1 x Audio Input
1 x Gate socket
1 x OSC Sync Input
EXT. POWER SUPPLY
18 V/DC 1670 mA 30W 90-240V
DIMENSIONS
37x27x12cm (closed)
WEIGHT
2.8 Kg
PRICE & PAYMENT
The Portello modular synthesisers are available directly from Pin Electronics only!
PORTELLO SYNTHI
Price: 3299€
ex.VAT and Shipping
Available around October 2024
